EW-01-12-F-S-500

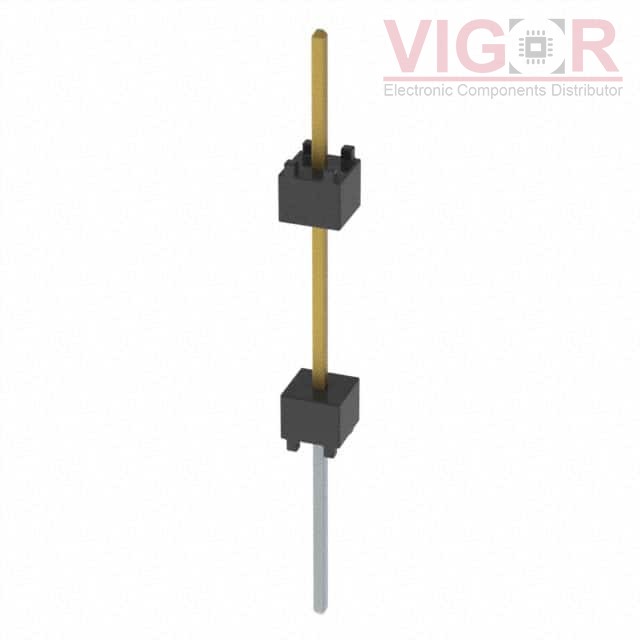

Image is for reference,
please contact us to get the real picture

Part No :: EW-01-12-F-S-500

Manufacturer: Samtec, Inc.

Description: CONN HDR 1POS STACK T/H GOLD

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 27 - Jul 31 2025

DataSheet: EW-01-12-F-S-500 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of EW-01-12-F-S-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EW-01-12-F-S-500 Specifications

Type	Description
Series:	Flex Stack, EW
Package:	Bulk
Part Status:	Active
Number of Positions:	1
Pitch:	-
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	1.030" (26.162mm)
Length - Post (Mating):	0.200" (5.080mm)
Length - Stack Height:	0.500" (12.700mm)
Length - Tail:	0.330" (8.382mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	3.00µin (0.076µm)
Color:	Black
