M22-2660505

M22-2660505

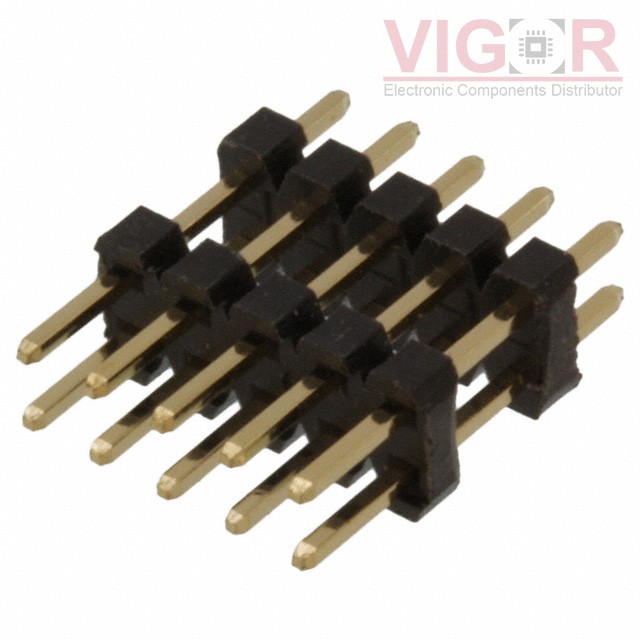

Image is for reference,
please contact us to get the real picture

Part No :

M22-2660505

Manufacturer
Harwin
Description
CONN HDR 10POS 0.079 STACK T/H
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
M22-2660505 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of M22-2660505 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

M22-2660505 Specifications
Type Description
Series:M22
Package:Bulk
Part Status:Obsolete
Number of Positions:10
Pitch:0.079" (2.00mm)
Number of Rows:2
Row Spacing:0.079" (2.00mm)
Length - Overall Pin:0.469" (11.900mm)
Length - Post (Mating):0.138" (3.500mm)
Length - Stack Height:0.236" (6.000mm)
Length - Tail:0.094" (2.400mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):-
Color:Black
