TCSD-12-01-N

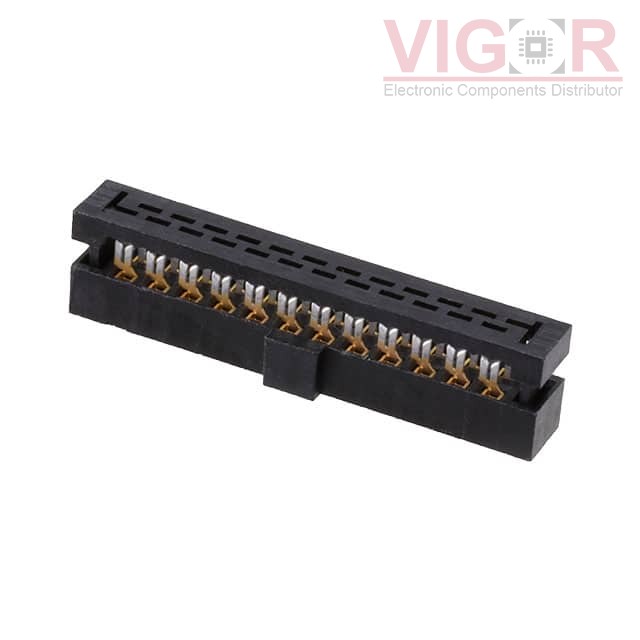

Image is for reference,
please contact us to get the real picture

Part No :: TCSD-12-01-N

Manufacturer: Samtec, Inc.

Description: CONN RCPT 24POS IDC 28AWG GOLD

Catalog: Rectangular Connectors - Free Hanging, Panel Mount

Shipped from: HK warehouse

Expected Shipping Date: Jul 04 - Jul 08 2025

DataSheet: TCSD-12-01-N PDF

Availability: 32 pieces

Unit Price: ~~$6.30000~~

Current price of TCSD-12-01-N is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TCSD-12-01-N Specifications

Type	Description
Series:	Tiger Eye™ TCSD
Package:	Tube
Part Status:	Active
Connector Type:	Receptacle
Contact Type:	Female Socket
Number of Positions:	24
Pitch:	0.079" (2.00mm)
Number of Rows:	2
Row Spacing:	0.079" (2.00mm)
Mounting Type:	Free Hanging (In-Line)
Fastening Type:	Push-Pull
Cable Termination:	IDC
Wire Type:	Ribbon Cable
Wire Gauge:	28 AWG
Features:	Feed Through, Polarizing Key
Contact Finish:	Gold
Contact Finish Thickness:	30.0µin (0.76µm)
Color:	Black

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
