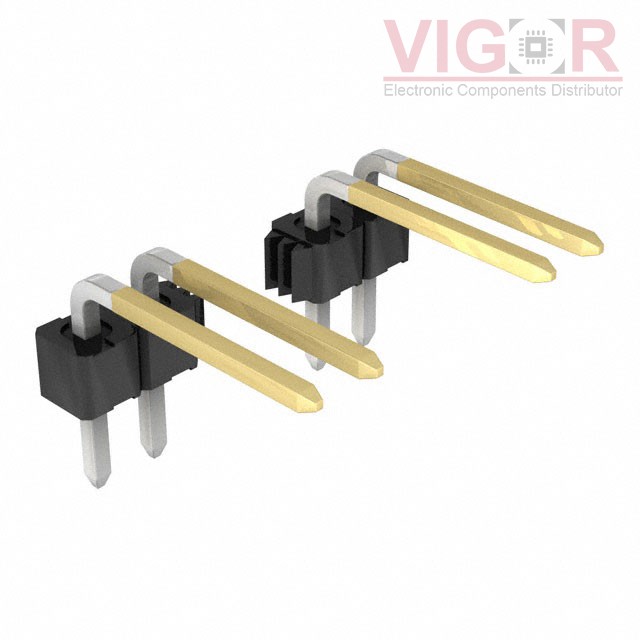

Image is for reference,
please contact us to get the real picture

Part No :

0022286263

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 26POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 05 - May 09 2024
DataSheet
0022286263 PDF
Availability
0 pieces
Unit Price
$1.27410

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0022286263 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

0022286263 Specifications
Type Description
Series:KK254, 42376
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:26
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.405" (10.29mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.090" (2.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
