T1M-05-F-SH-L-K

T1M-05-F-SH-L-K

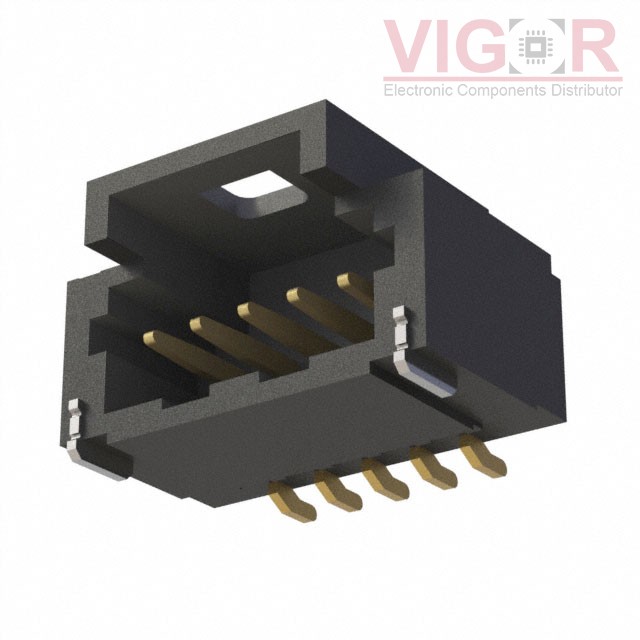

Image is for reference,
please contact us to get the real picture

Part No :

T1M-05-F-SH-L-K

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD R/A 5POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 04 - May 08 2024
DataSheet
T1M-05-F-SH-L-K PDF
Availability
0 pieces
Unit Price
$2.65000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of T1M-05-F-SH-L-K is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

T1M-05-F-SH-L-K Specifications
Type Description
Series:T1M
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.181" (4.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Pick and Place
Operating Temperature:-55°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3.3A per Contact
Voltage Rating:250VAC, 353VDC
