2016480040

2016480040

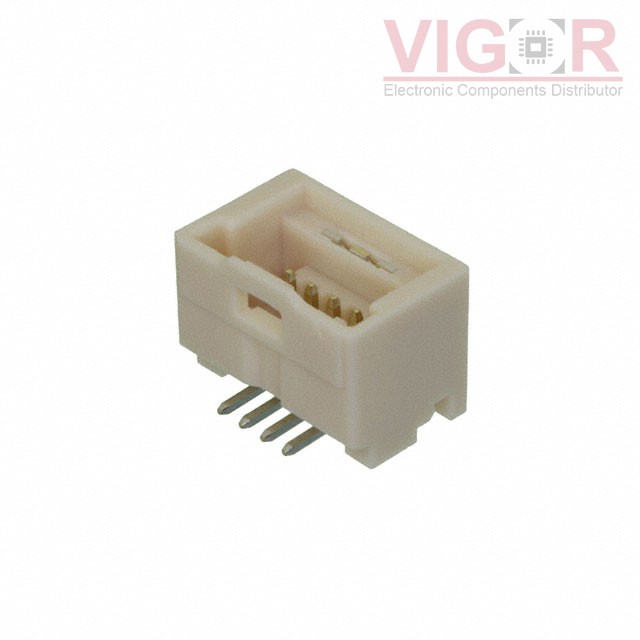

Image is for reference,
please contact us to get the real picture

Part No :

2016480040

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD 4POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
2016480040 PDF
Availability
6777 pieces
Unit Price
$0.60000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 2016480040 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

2016480040 Specifications
Type Description
Series:Spot-On 1.5 201648
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:4
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.354" (9.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon, Glass Filled
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:100V
