860-10-026-10-001101

860-10-026-10-001101

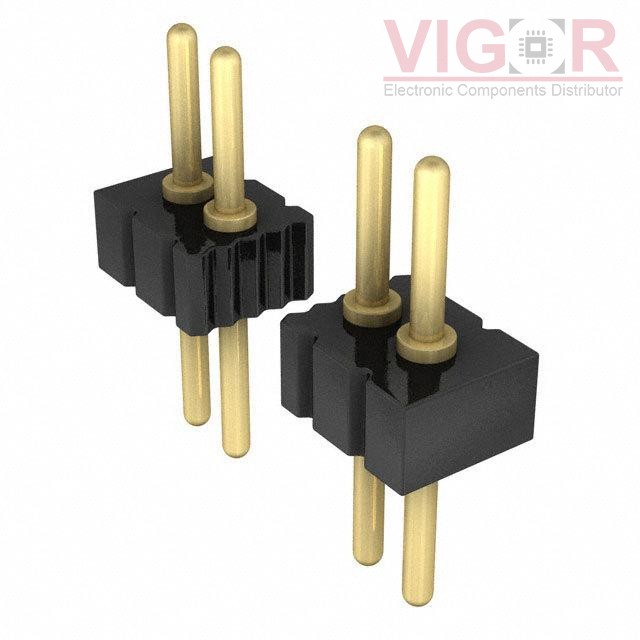

Image is for reference,
please contact us to get the real picture

Part No :

860-10-026-10-001101

Manufacturer
Preci-Dip
Description
CONN HEADER VERT 26POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
860-10-026-10-001101 PDF
Availability
0 pieces
Unit Price
$2.05552

Current price of 860-10-026-10-001101 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

860-10-026-10-001101 Specifications
Type Description
Series:860
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:26
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.086" (2.20mm)
Contact Length - Post:0.098" (2.50mm)
Overall Contact Length:0.241" (6.13mm)
Insulation Height:0.047" (1.20mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:150VDC
