B7B-ZR(LF)(SN)

B7B-ZR(LF)(SN)

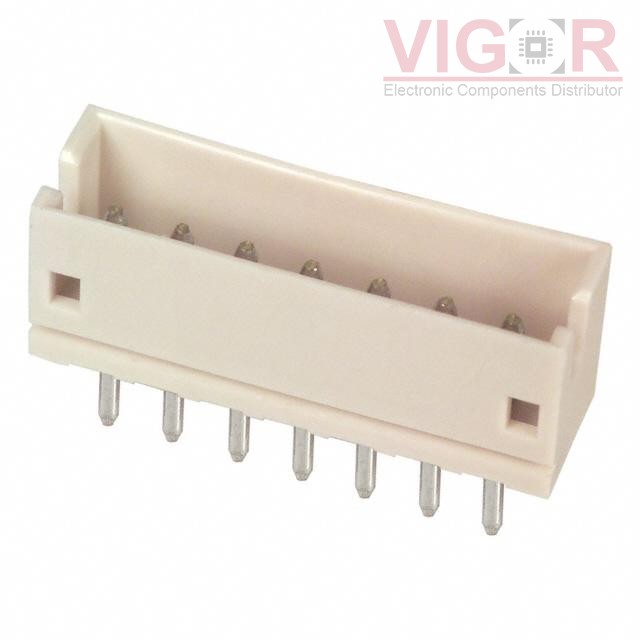

Image is for reference,
please contact us to get the real picture

Part No :

B7B-ZR(LF)(SN)

Manufacturer
JST
Description
CONN HEADER VERT 7POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
B7B-ZR(LF)(SN) PDF
Availability
425 pieces
Unit Price
$0.34000

Current price of B7B-ZR(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

B7B-ZR(LF)(SN) Specifications
Type Description
Series:ZH
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.059" (1.50mm)
Number of Positions:7
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.094" (2.40mm)
Contact Length - Post:0.106" (2.69mm)
Overall Contact Length:0.256" (6.50mm)
Insulation Height:0.177" (4.50mm)
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A
Voltage Rating:50V
