77315-103-02LF

77315-103-02LF

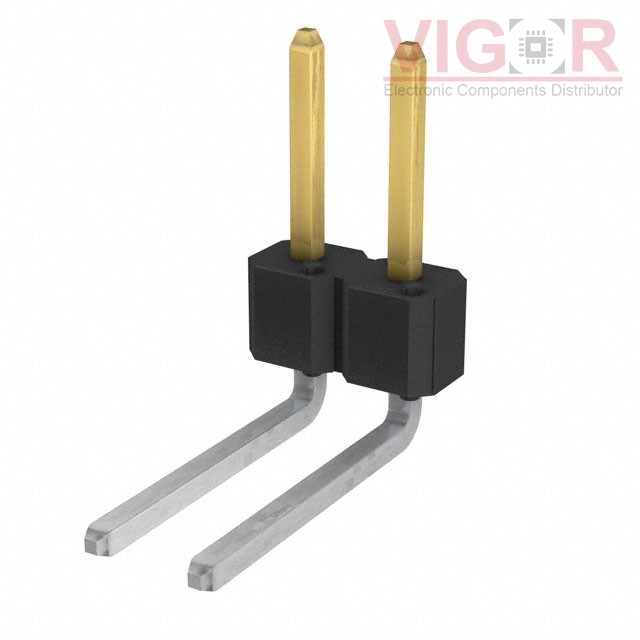

Image is for reference,
please contact us to get the real picture

Part No :

77315-103-02LF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
CONN HEADER R/A 2POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
77315-103-02LF PDF
Availability
0 pieces
Unit Price
$0.09316

Current price of 77315-103-02LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

77315-103-02LF Specifications
Type Description
Series:BERGSTIK®
Package:Bag
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.225" (5.72mm)
Contact Length - Post:0.301" (7.65mm)
Overall Contact Length:-
Insulation Height:0.094" (2.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold, GXT™
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
