TFM-110-02-L-D-WT

TFM-110-02-L-D-WT

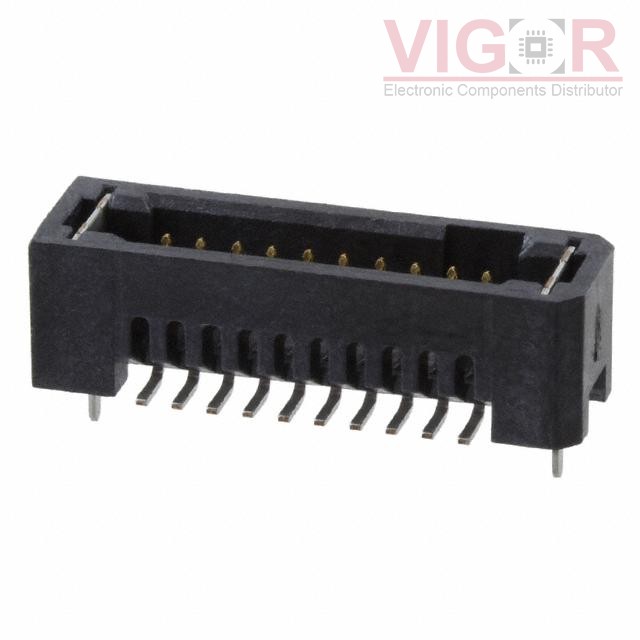

Image is for reference,
please contact us to get the real picture

Part No :

TFM-110-02-L-D-WT

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
TFM-110-02-L-D-WT PDF
Availability
362 pieces
Unit Price
$5.20000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TFM-110-02-L-D-WT is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

TFM-110-02-L-D-WT Specifications
Type Description
Series:Tiger Eye™ TFM
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.131" (3.33mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.220" (5.60mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.9A per Contact
Voltage Rating:275VAC
