0022053231

0022053231

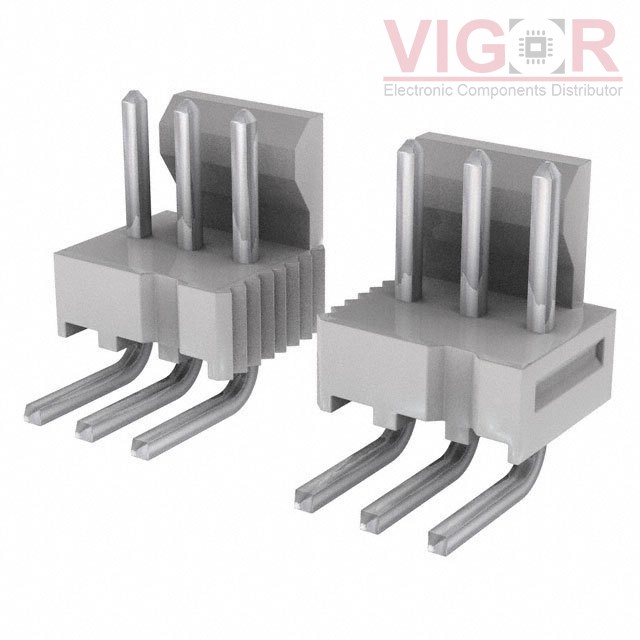

Image is for reference,
please contact us to get the real picture

Part No :

0022053231

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 23POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
0022053231 PDF
Availability
0 pieces
Unit Price
$1.13347

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0022053231 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

0022053231 Specifications
Type Description
Series:KK254, 7478
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:23
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.264" (6.70mm)
Contact Length - Post:0.141" (3.58mm)
Overall Contact Length:-
Insulation Height:0.256" (6.50mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:100.0µin (2.54µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:White
Current Rating (Amps):-
Voltage Rating:-
