Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of PBC10SFBN is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | - |
Package: | Bulk |
Part Status: | Active |

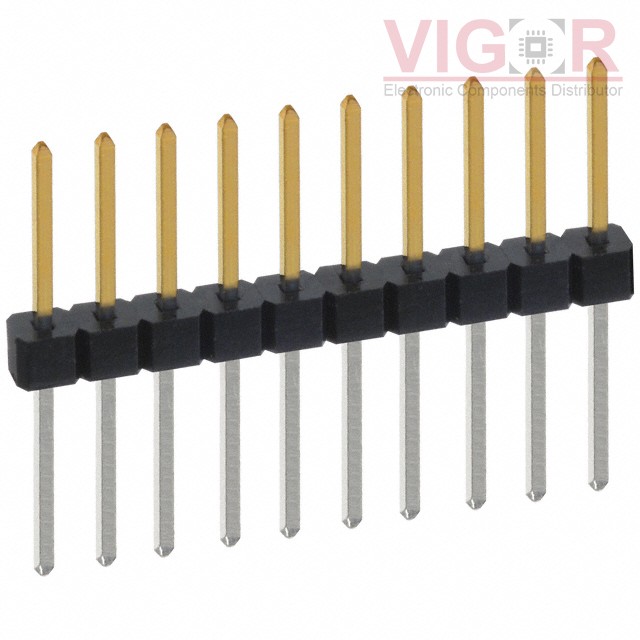

Connector Type: | Header, Breakaway |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 10 |
Number of Rows: | 1 |
Row Spacing - Mating: | - |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Unshrouded |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.318" (8.08mm) |
Contact Length - Post: | 0.220" (5.58mm) |
Overall Contact Length: | 0.638" (16.21mm) |
Insulation Height: | 0.100" (2.54mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | 10.0µin (0.25µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Polybutylene Terephthalate (PBT) |
Features: | - |
Operating Temperature: | -65°C ~ 125°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 3A |
Voltage Rating: | - |
