TFM-106-02-L-DH

TFM-106-02-L-DH

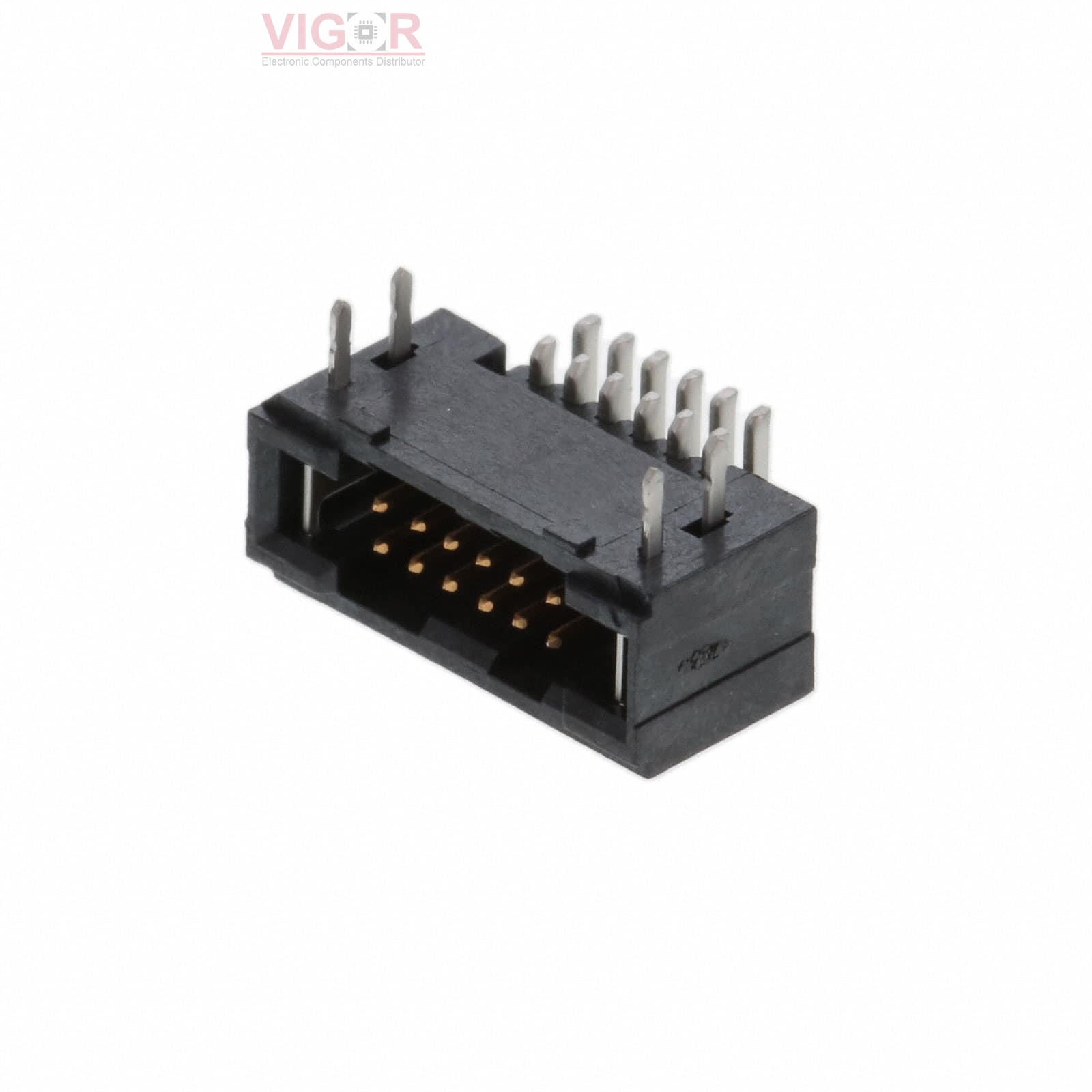

Image is for reference,
please contact us to get the real picture

Part No :

TFM-106-02-L-DH

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD R/A 12POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
TFM-106-02-L-DH PDF
Availability
188 pieces
Unit Price
$3.54000

Current price of TFM-106-02-L-DH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TFM-106-02-L-DH Specifications
Type Description
Series:Tiger Eye™ TFM
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.150" (3.81mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.225" (5.72mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.9A per Contact
Voltage Rating:275VAC
