BM05B-ACHSS-A-GAN-ETF(LF)(SN)

BM05B-ACHSS-A-GAN-ETF(LF)(SN)

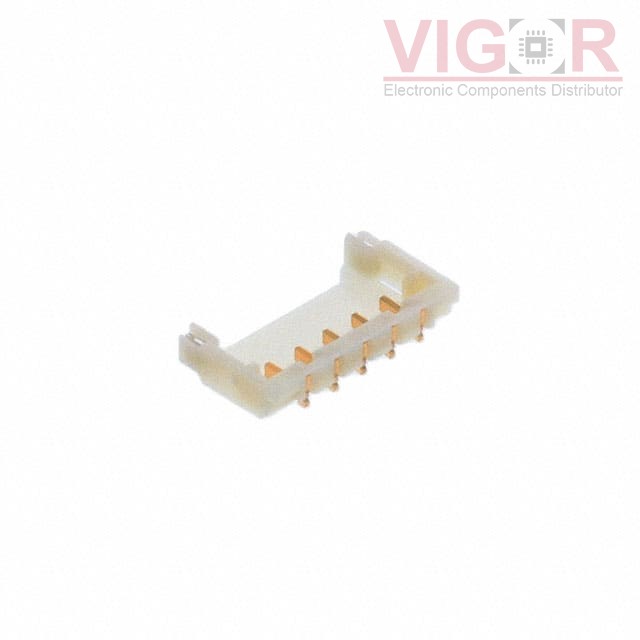

Image is for reference,
please contact us to get the real picture

Part No :

BM05B-ACHSS-A-GAN-ETF(LF)(SN)

Manufacturer
JST
Description
CONN HEADER SMD R/A 5POS 1.2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
BM05B-ACHSS-A-GAN-ETF(LF)(SN) PDF
Availability
10048 pieces
Unit Price
$0.98000

Current price of BM05B-ACHSS-A-GAN-ETF(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BM05B-ACHSS-A-GAN-ETF(LF)(SN) Specifications
Type Description
Series:ACH
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Blade
Pitch - Mating:0.047" (1.20mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Detent Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.055" (1.40mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Solder Retention
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1.5A
Voltage Rating:50V
