FTSH-110-03-F-D

FTSH-110-03-F-D

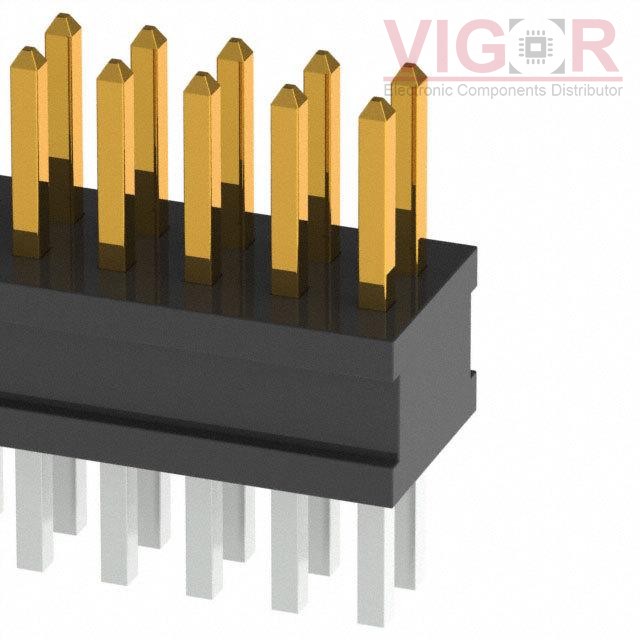

Image is for reference,
please contact us to get the real picture

Part No :

FTSH-110-03-F-D

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 20POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 17 - Aug 21 2025
DataSheet
FTSH-110-03-F-D PDF
Availability
250 pieces
Unit Price
$2.73000

Current price of FTSH-110-03-F-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FTSH-110-03-F-D Specifications
Type Description
Series:FTSH
Package:Tube
Part Status:Active
Connector Type:Header, Cuttable
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.065" (1.65mm)
Contact Length - Post:0.090" (2.29mm)
Overall Contact Length:0.255" (6.48mm)
Insulation Height:0.099" (2.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:3.00µin (0.076µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3.4A per Contact
Voltage Rating:-
