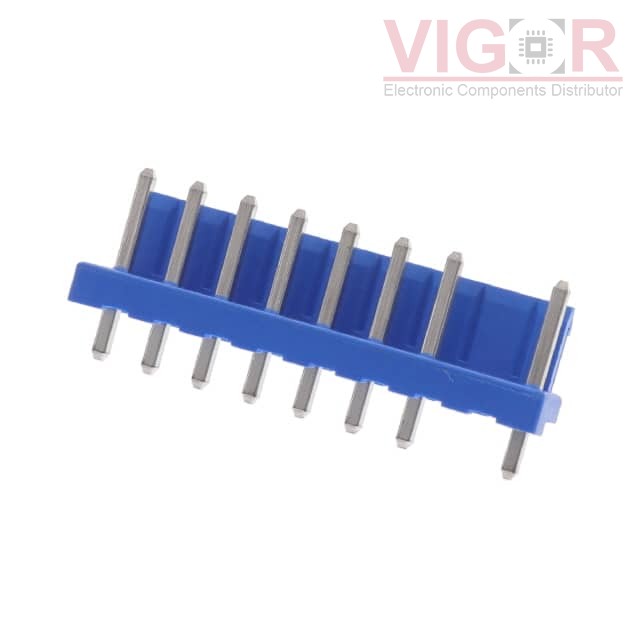

1744109-4

1744109-4

Image is for reference,
please contact us to get the real picture

Part No :

1744109-4

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 9POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 15 - Jul 19 2025
DataSheet
1744109-4 PDF
Availability
2800 pieces
Unit Price
$0.59000

Current price of 1744109-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1744109-4 Specifications
Type Description
Series:Economy Power
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:9
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:8
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.303" (7.70mm)
Contact Length - Post:0.145" (3.68mm)
Overall Contact Length:0.567" (14.40mm)
Insulation Height:-
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-25°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Blue
Current Rating (Amps):7.5A
Voltage Rating:250VAC
