MX47039NF2

MX47039NF2

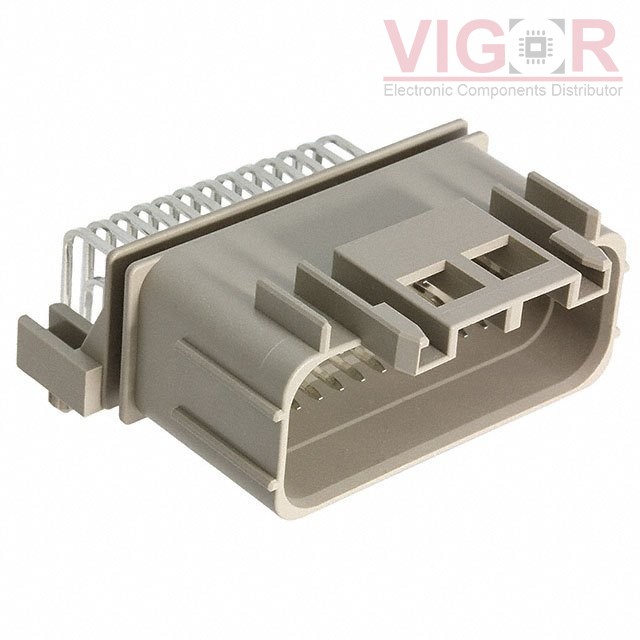

Image is for reference,
please contact us to get the real picture

Part No :

MX47039NF2

Manufacturer
JAE Electronics
Description
CONN HEADER R/A 39POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
MX47039NF2 PDF
Availability
183 pieces
Unit Price
$22.16000

Current price of MX47039NF2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

MX47039NF2 Specifications
Type Description
Series:MX47
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:39
Number of Rows:3
Row Spacing - Mating:0.142" (3.60mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.138" (3.50mm)
Overall Contact Length:-
Insulation Height:0.760" (19.30mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Board Guide
Operating Temperature:-40°C ~ 125°C
Ingress Protection:Waterproof
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):3A
Voltage Rating:-
