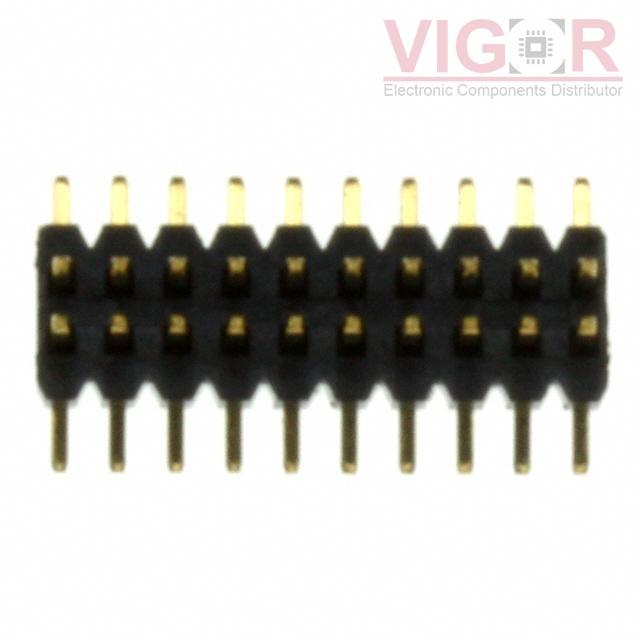

SMH102-LPSE-D10-SP-BK

SMH102-LPSE-D10-SP-BK

Image is for reference,
please contact us to get the real picture

Part No :

SMH102-LPSE-D10-SP-BK

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER SMD 20POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
SMH102-LPSE-D10-SP-BK PDF
Availability
0 pieces
Unit Price
$2.61914

Current price of SMH102-LPSE-D10-SP-BK is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SMH102-LPSE-D10-SP-BK Specifications
Type Description
Series:SMH
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.039" (1.00mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.075" (1.90mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.039" (1.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Guide
Operating Temperature:-40°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:-
