2PH1-12-UA-SMT-B

2PH1-12-UA-SMT-B

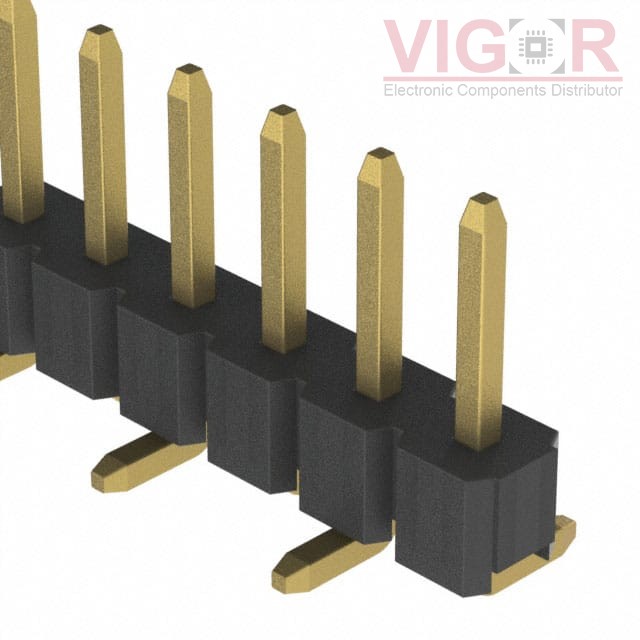

Image is for reference,
please contact us to get the real picture

Part No :

2PH1-12-UA-SMT-B

Manufacturer
Adam Tech
Description
CONN HEADER SMD 12POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 18 - Jul 22 2025
DataSheet
2PH1-12-UA-SMT-B PDF
Availability
1382 pieces
Unit Price
$0.31000

Current price of 2PH1-12-UA-SMT-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2PH1-12-UA-SMT-B Specifications
Type Description
Series:2PH1
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:12
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.157" (4.00mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.079" (2.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:250VAC
