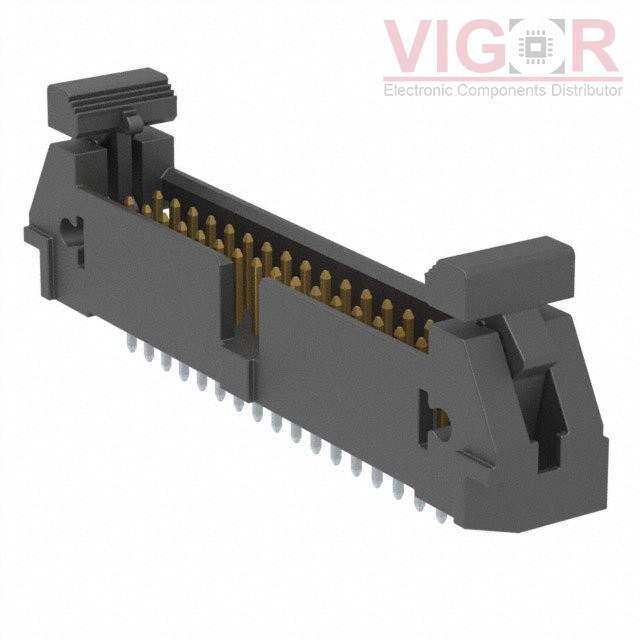

EJH-117-01-S-D-TH

EJH-117-01-S-D-TH

Image is for reference,
please contact us to get the real picture

Part No :

EJH-117-01-S-D-TH

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 34POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
EJH-117-01-S-D-TH PDF
Availability
0 pieces
Unit Price
$16.02000

Current price of EJH-117-01-S-D-TH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EJH-117-01-S-D-TH Specifications
Type Description
Series:EJH
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.225" (5.72mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.500" (12.70mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Keying Slot
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
