DF20F-20DP-1H(50)

DF20F-20DP-1H(50)

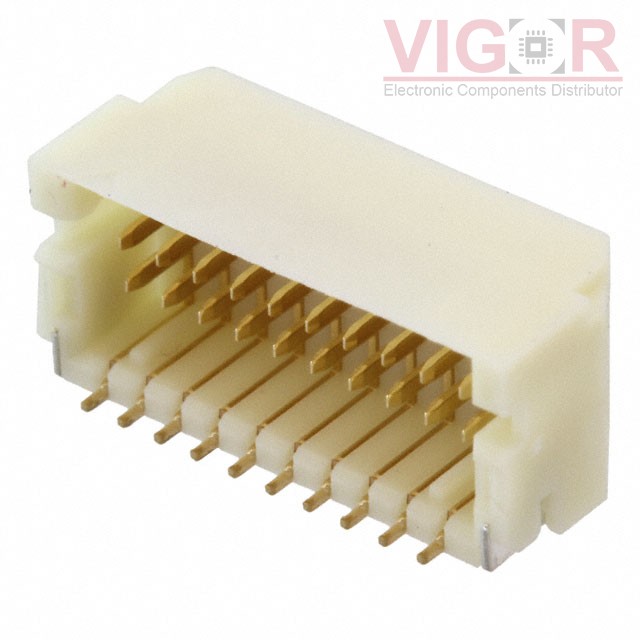

Image is for reference,
please contact us to get the real picture

Part No :

DF20F-20DP-1H(50)

Manufacturer
Hirose
Description
CONN HEADER SMD R/A 20POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
DF20F-20DP-1H(50) PDF
Availability
1767 pieces
Unit Price
$2.18000

Current price of DF20F-20DP-1H(50) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF20F-20DP-1H(50) Specifications
Type Description
Series:DF20
Package:Tube
Part Status:Last Time Buy
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.039" (1.00mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.217" (5.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):1A
Voltage Rating:100V
