0026481246

0026481246

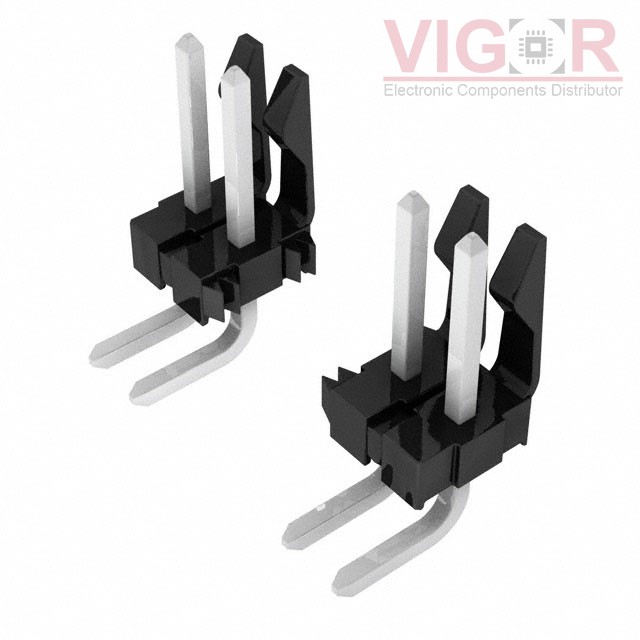

Image is for reference,
please contact us to get the real picture

Part No :

0026481246

Manufacturer
Woodhead - Molex
Description
CONN HEADER R/A 24POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
0026481246 PDF
Availability
6303 pieces
Unit Price
$1.92000

Current price of 0026481246 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0026481246 Specifications
Type Description
Series:KK396, 41672
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:24
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.450" (11.43mm)
Contact Length - Post:0.212" (5.38mm)
Overall Contact Length:-
Insulation Height:0.355" (9.02mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
