Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of TSM-110-01-T-DV-LC-001 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

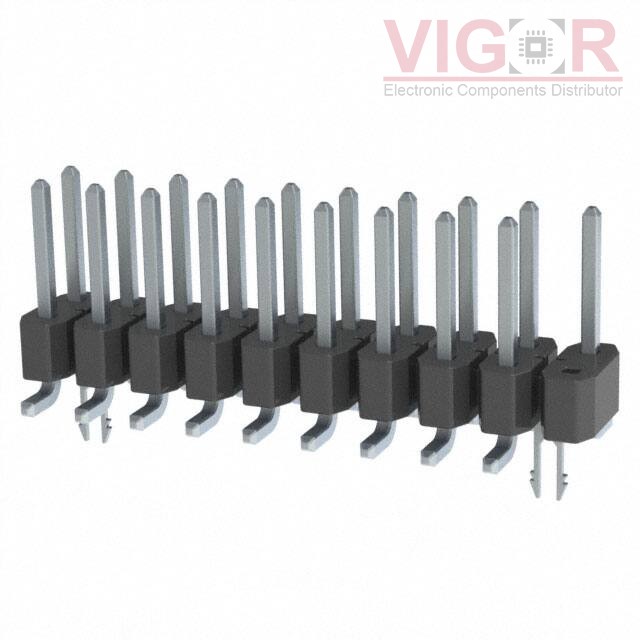

Type | Description |
---|---|
Series: | TSM |
Package: | Tube |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 20 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | 19 |
Style: | Board to Board or Cable |
Shrouding: | Unshrouded |
Mounting Type: | Surface Mount |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.230" (5.84mm) |
Contact Length - Post: | - |
Overall Contact Length: | - |
Insulation Height: | 0.100" (2.54mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | - |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Liquid Crystal Polymer (LCP) |
Features: | Board Lock |
Operating Temperature: | -55°C ~ 105°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
