S02B-ZESK-2D(T)(LF)(SN)

S02B-ZESK-2D(T)(LF)(SN)

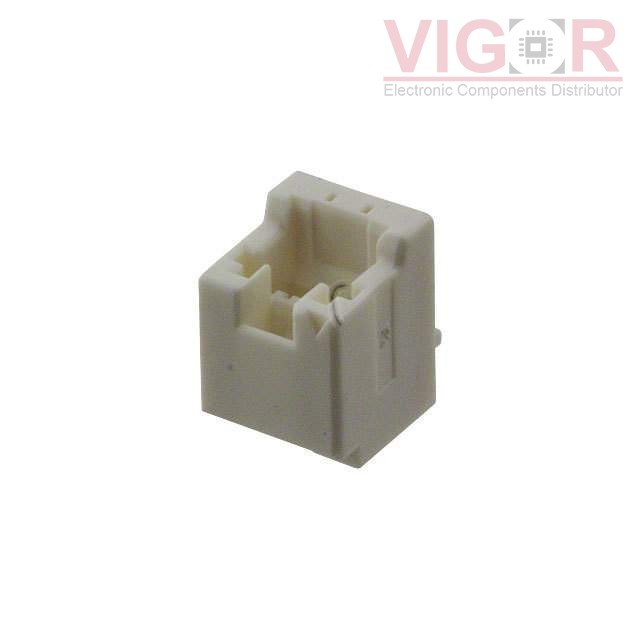

Image is for reference,
please contact us to get the real picture

Part No :

S02B-ZESK-2D(T)(LF)(SN)

Manufacturer
JST
Description
CONN HEADER R/A 2POS 1.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
S02B-ZESK-2D(T)(LF)(SN) PDF
Availability
2449 pieces
Unit Price
$0.59000

Current price of S02B-ZESK-2D(T)(LF)(SN) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

S02B-ZESK-2D(T)(LF)(SN) Specifications
Type Description
Series:ZE
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Outer Shroud Contact
Pitch - Mating:0.059" (1.50mm)
Number of Positions:2
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Kinked Pin, Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:-
Insulation Height:0.248" (6.30mm)
Contact Shape:Rectangular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polyamide (PA66), Nylon 6/6, Glass Filled
Features:Board Guide
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Natural
Current Rating (Amps):2A
Voltage Rating:100V
