Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 77313-424-10LF is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | BERGSTIK® |
Package: | Bulk |
Part Status: | Active |

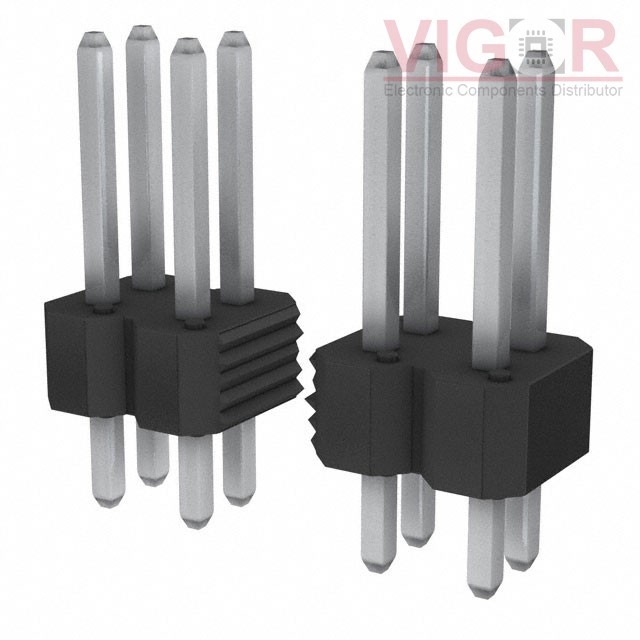

Connector Type: | Header, Breakaway |
Contact Type: | Male Pin |
Pitch - Mating: | 0.100" (2.54mm) |
Number of Positions: | 10 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.100" (2.54mm) |
Number of Positions Loaded: | All |
Style: | Board to Board or Cable |
Shrouding: | Unshrouded |
Mounting Type: | Through Hole |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.266" (6.75mm) |
Contact Length - Post: | 0.114" (2.90mm) |
Overall Contact Length: | 0.480" (12.19mm) |
Insulation Height: | 0.100" (2.54mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Tin |
Contact Finish Thickness - Mating: | 78.7µin (2.00µm) |
Contact Finish - Post: | Tin |
Contact Material: | Phosphor Bronze |
Insulation Material: | Thermoplastic |
Features: | - |
Operating Temperature: | - |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | - |
Voltage Rating: | - |
