G125-MH10805M3-2AD2ADP

G125-MH10805M3-2AD2ADP

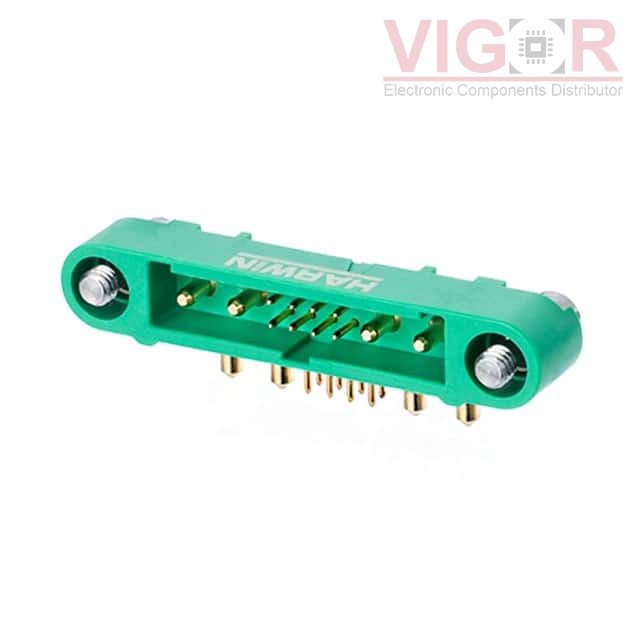

Image is for reference,
please contact us to get the real picture

Part No :

G125-MH10805M3-2AD2ADP

Manufacturer
Harwin
Description
CONN HDR 4PWR 8SIG PCB VERT
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
G125-MH10805M3-2AD2ADP PDF
Availability
37 pieces
Unit Price
$67.75000

Current price of G125-MH10805M3-2AD2ADP is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

G125-MH10805M3-2AD2ADP Specifications
Type Description
Series:Gecko MT
Package:Strip
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:12 (8 + 4 Power)
Number of Rows:2
Row Spacing - Mating:0.049" (1.25mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Screw Lock
Contact Length - Mating:-
Contact Length - Post:0.130" (3.30mm)
Overall Contact Length:-
Insulation Height:0.207" (5.25mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:Gold
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Features:Jackscrews, Mating Flange, Pick and Place, Polarizing Key
Operating Temperature:-65°C ~ 150°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):2A, 10A
Voltage Rating:450V
