2216-10C00R2U

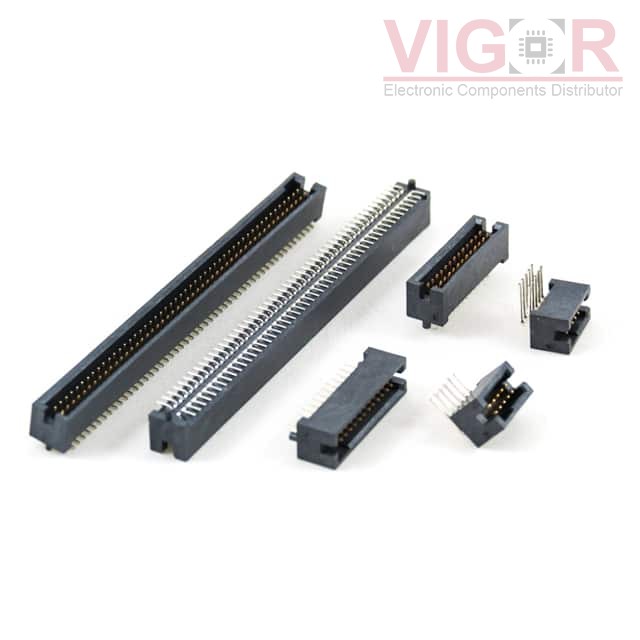

Image is for reference,
please contact us to get the real picture

Part No :: 2216-10C00R2U

Manufacturer: Oupiin

Description: BOX HEADER, 10 PIN, RIGHT ANGLE,

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 03 - Aug 07 2025

DataSheet: 2216-10C00R2U PDF

Availability: 616 pieces

Unit Price: ~~$1.43000~~

Current price of 2216-10C00R2U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2216-10C00R2U Specifications

Type	Description
Series:	2216
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	10
Number of Rows:	2
Row Spacing - Mating:	0.050" (1.27mm)
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	-
Contact Length - Post:	0.075" (1.91mm)
Overall Contact Length:	-
Insulation Height:	0.222" (5.65mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	Flash
Contact Finish - Post:	Gold
Contact Material:	Brass
Insulation Material:	Plastic
Features:	-
Operating Temperature:	-65°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	-
Current Rating (Amps):	1A
Voltage Rating:	-
