5499345-8

5499345-8

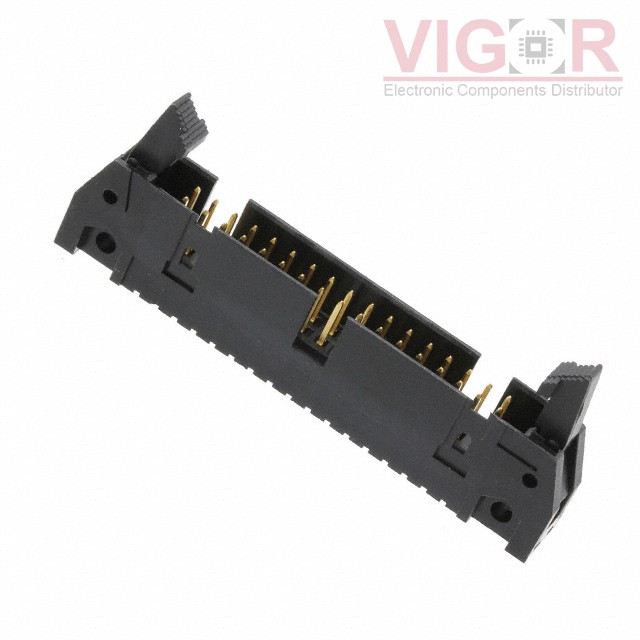

Image is for reference,
please contact us to get the real picture

Part No :

5499345-8

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER R/A 34POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 05 - Aug 09 2025
DataSheet
5499345-8 PDF
Availability
60 pieces
Unit Price
$9.25000

Current price of 5499345-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5499345-8 Specifications
Type Description
Series:AMP-Latch
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Short
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.110" (2.79mm)
Overall Contact Length:-
Insulation Height:0.315" (8.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:-
Features:Keying Slot, Mounting Flange
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:250VAC
