104894-8

104894-8

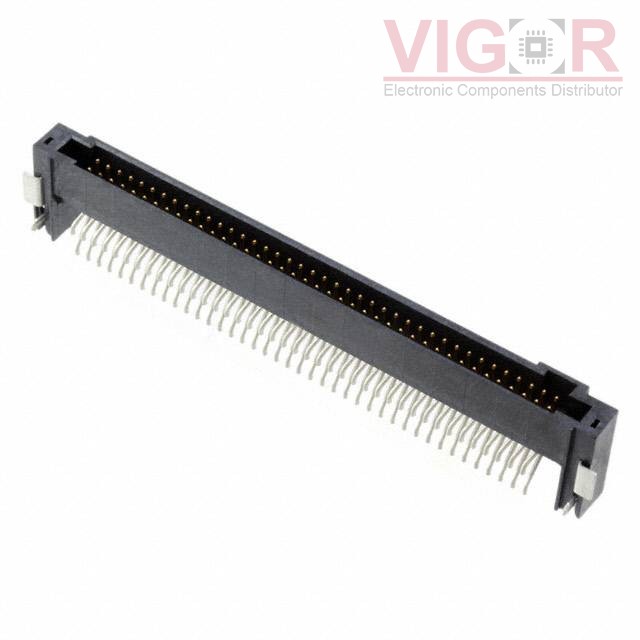

Image is for reference,
please contact us to get the real picture

Part No :

104894-8

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER SMD R/A 80POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
104894-8 PDF
Availability
5 pieces
Unit Price
$15.69000

Current price of 104894-8 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

104894-8 Specifications
Type Description
Series:AMPMODU 50/50 Grid
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:80
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.213" (5.40mm)
Contact Shape:Circular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin-Lead
Contact Material:Brass
Insulation Material:Liquid Crystal Polymer (LCP)
Features:Board Lock, Solder Retention
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):0.5A per Contact
Voltage Rating:-
