10153118-132KALF

10153118-132KALF

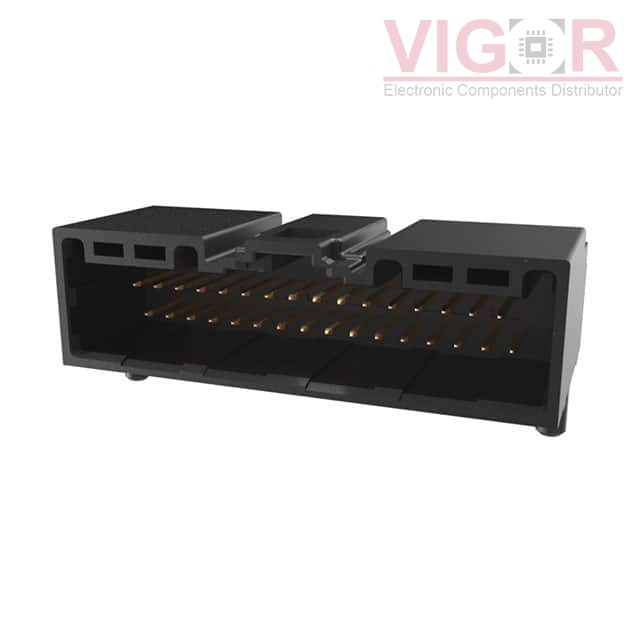

Image is for reference,
please contact us to get the real picture

Part No :

10153118-132KALF

Manufacturer
Storage & Server IO (Amphenol ICC)
Description
MINITEK 1.80MM WTB CONNECTOR, US
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
10153118-132KALF PDF
Availability
0 pieces
Unit Price
$3.24000

Current price of 10153118-132KALF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

10153118-132KALF Specifications
Type Description
Series:-
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.071" (1.80mm)
Number of Positions:32
Number of Rows:2
Row Spacing - Mating:0.098" (2.50mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.220" (5.59mm)
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.409" (10.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Thermoplastic
Features:Board Guide
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A per Contact
Voltage Rating:48V
