3221-26-0300-00

3221-26-0300-00

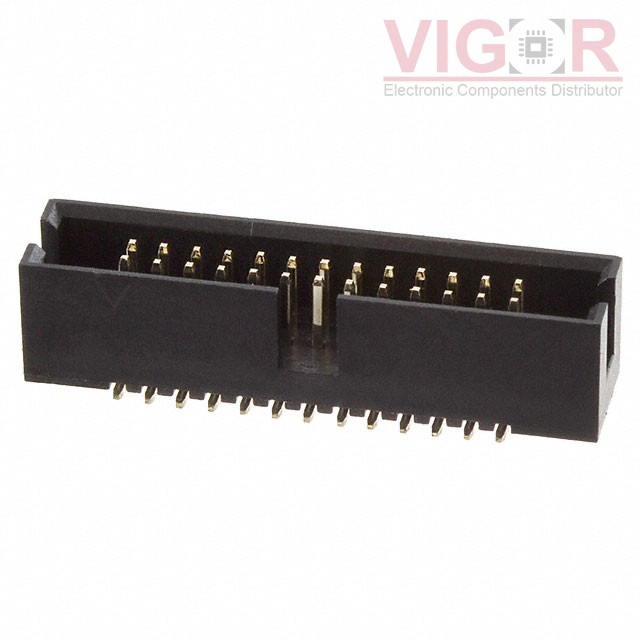

Image is for reference,
please contact us to get the real picture

Part No :

3221-26-0300-00

Manufacturer
CnC Tech
Description
CONN HEADER SMD 26POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 17 - Jul 21 2025
DataSheet
3221-26-0300-00 PDF
Availability
1660 pieces
Unit Price
$1.69000

Current price of 3221-26-0300-00 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

3221-26-0300-00 Specifications
Type Description
Series:-
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:26
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.213" (5.40mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:Keying Slot
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:-
