PH2-10-UA

PH2-10-UA

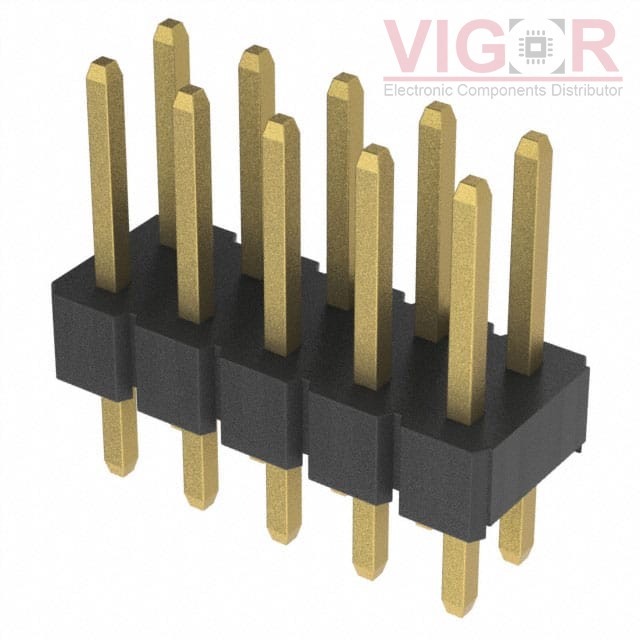

Image is for reference,
please contact us to get the real picture

Part No :

PH2-10-UA

Manufacturer
Adam Tech
Description
CONN HEADER VERT 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 27 - Jul 31 2025
DataSheet
PH2-10-UA PDF
Availability
3329 pieces
Unit Price
$0.19000

Current price of PH2-10-UA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PH2-10-UA Specifications
Type Description
Series:PH2
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.235" (5.97mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:0.453" (11.50mm)
Insulation Height:0.098" (2.50mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:250VAC
