BKT-169-05-L-V-S

BKT-169-05-L-V-S

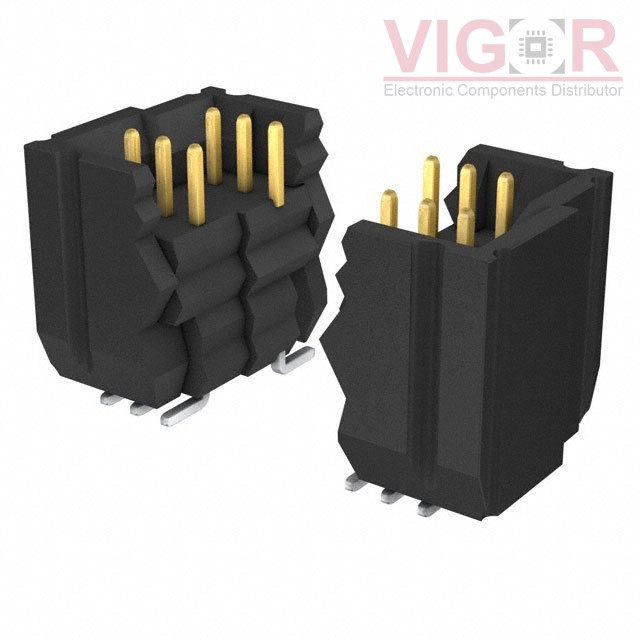

Image is for reference,
please contact us to get the real picture

Part No :

BKT-169-05-L-V-S

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 69POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
BKT-169-05-L-V-S PDF
Availability
0 pieces
Unit Price
$12.42267

Current price of BKT-169-05-L-V-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BKT-169-05-L-V-S Specifications
Type Description
Series:BKT
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:69
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.065" (1.65mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.267" (6.78mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:End Shrouds
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.8A per Contact
Voltage Rating:-
