Type | Description |
---|---|
Series: | 951 |
Package: | Bulk |
Part Status: | Active |
Connector Type: | Header |
Contact Type: | Male Pin |
Pitch - Mating: | 0.079" (2.00mm) |
Number of Positions: | 14 |
Number of Rows: | 2 |
Row Spacing - Mating: | 0.079" (2.00mm) |
Number of Positions Loaded: | All |
Style: | Board to Board |
Shrouding: | Unshrouded |
Mounting Type: | Through Hole, Right Angle |
Termination: | Solder |
Fastening Type: | Push-Pull |
Contact Length - Mating: | 0.173" (4.40mm) |
Contact Length - Post: | 0.110" (2.79mm) |
Overall Contact Length: | - |
Insulation Height: | 0.157" (4.00mm) |
Contact Shape: | Square |
Contact Finish - Mating: | Gold |
Contact Finish Thickness - Mating: | Flash |
Contact Finish - Post: | Tin |
Contact Material: | Copper Alloy |
Insulation Material: | Thermoplastic |
Features: | - |
Operating Temperature: | -55°C ~ 125°C |
Ingress Protection: | - |
Material Flammability Rating: | UL94 V-0 |
Insulation Color: | Black |
Current Rating (Amps): | 1A |
Voltage Rating: | - |

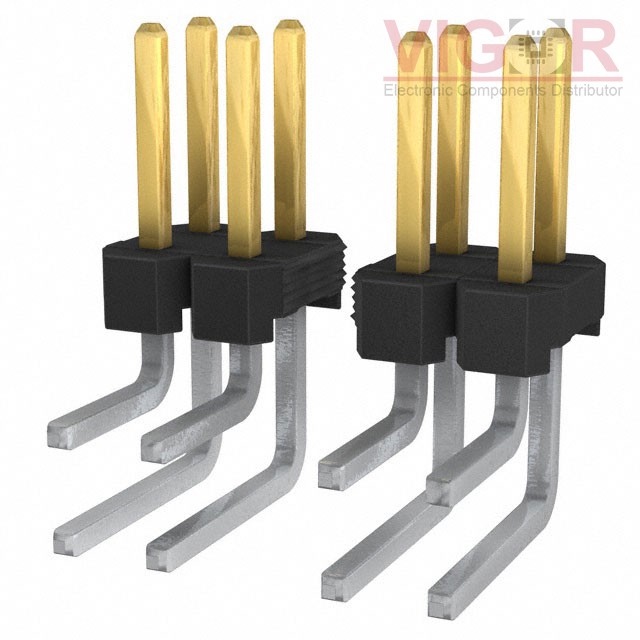

CONN HEADER R/A 14POS 2MM
