HPMC-110-03-L-D-03

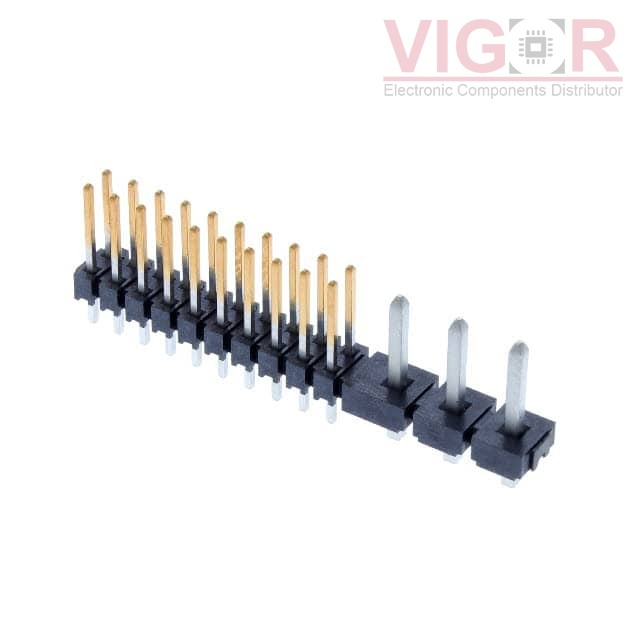

Image is for reference,
please contact us to get the real picture

Part No :: HPMC-110-03-L-D-03

Manufacturer: Samtec, Inc.

Description: CONN HDR .1" SIGNAL/PWR COMBO

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: HPMC-110-03-L-D-03 PDF

Availability: 0 pieces

Unit Price: ~~$7.64000~~

Current price of HPMC-110-03-L-D-03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

HPMC-110-03-L-D-03 Specifications

Type	Description
Series:	HPMC
Package:	Tube
Part Status:	Active
Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	-
Number of Positions:	23 (20 + 3 Power)
Number of Rows:	-
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board
Shrouding:	Unshrouded
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.320" (8.13mm)
Contact Length - Post:	0.100" (2.54mm)
Overall Contact Length:	0.520" (13.21mm)
Insulation Height:	-
Contact Shape:	Square
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Tin
Contact Material:	Beryllium Copper, Phosphor Bronze
Insulation Material:	Liquid Crystal Polymer (LCP)
Features:	-
Operating Temperature:	-55°C ~ 125°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	850VAC, 1200VDC

Please confirm the specifications of the products when ordering.
