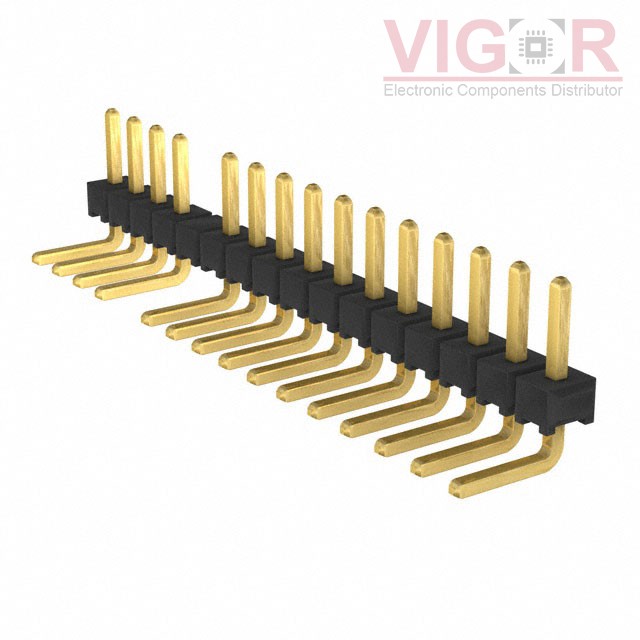

TMM-116-01-L-S-RA-005

TMM-116-01-L-S-RA-005

Image is for reference,
please contact us to get the real picture

Part No :

TMM-116-01-L-S-RA-005

Manufacturer
Samtec, Inc.
Description
CONN HEADER R/A 16POS 2MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 19 - Jul 23 2025
DataSheet
TMM-116-01-L-S-RA-005 PDF
Availability
432 pieces
Unit Price
$3.38000

Current price of TMM-116-01-L-S-RA-005 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TMM-116-01-L-S-RA-005 Specifications
Type Description
Series:TMM
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.079" (2.00mm)
Number of Positions:16
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:15
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.126" (3.20mm)
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:0.079" (2.00mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):3.2A per Contact
Voltage Rating:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT PBC18DAEN

PBC18DAEN

CONN HEADER VERT 36POS 2.54MM

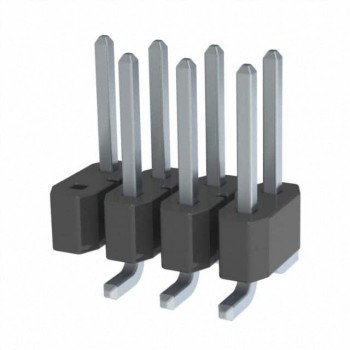

HOT TSM-104-01-T-DV-007

TSM-104-01-T-DV-007

CONN HEADER SMD 8POS 2.54MM

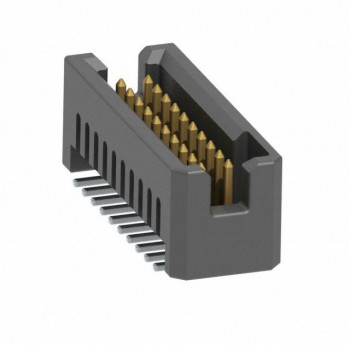

HOT TFM-110-02-L-D-P-TR
