DF1-10P-2.5DS(05)

DF1-10P-2.5DS(05)

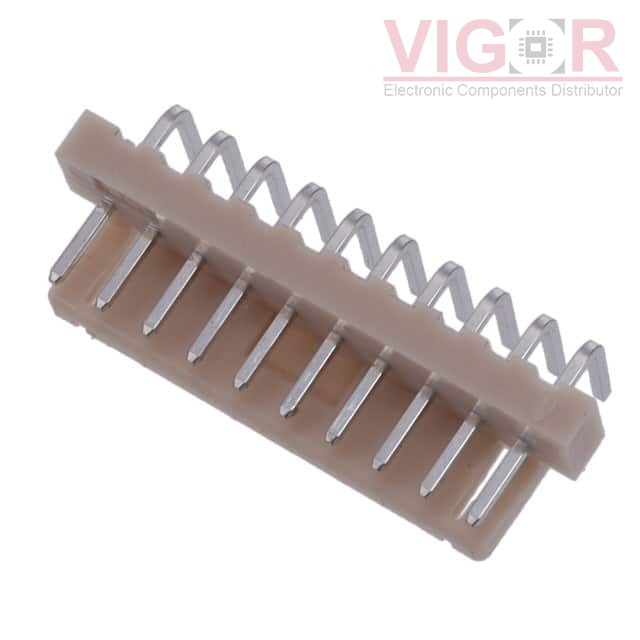

Image is for reference,
please contact us to get the real picture

Part No :

DF1-10P-2.5DS(05)

Manufacturer
Hirose
Description
CONN HEADER R/A 10POS 2.5MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 31 - Aug 04 2025
DataSheet
DF1-10P-2.5DS(05) PDF
Availability
1072 pieces
Unit Price
$0.70000

Current price of DF1-10P-2.5DS(05) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF1-10P-2.5DS(05) Specifications
Type Description
Series:DF1
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.098" (2.50mm)
Number of Positions:10
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.177" (4.50mm)
Contact Length - Post:0.118" (3.00mm)
Overall Contact Length:-
Insulation Height:0.236" (6.00mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:-
Operating Temperature:-30°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Brown
Current Rating (Amps):3A
Voltage Rating:250V
