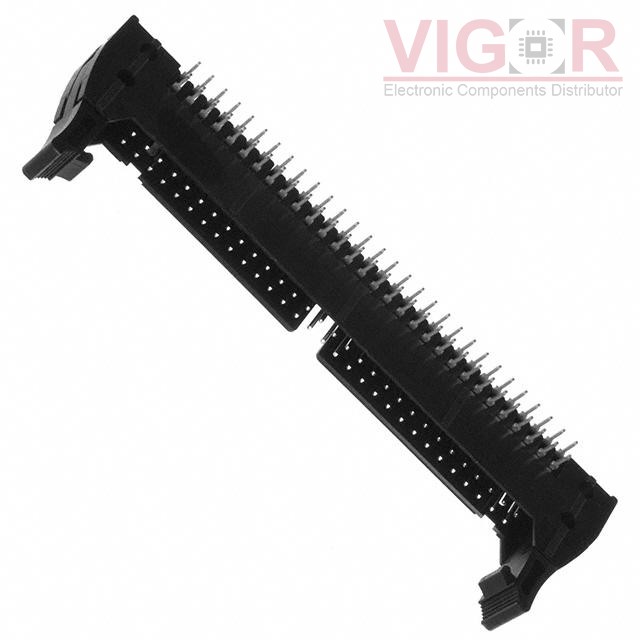

XG4A-6034

XG4A-6034

Image is for reference,
please contact us to get the real picture

Part No :

XG4A-6034

Manufacturer
Omron Electronics Components
Description
CONN HEADER R/A 60POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
XG4A-6034 PDF
Availability
518 pieces
Unit Price
$3.41000

Current price of XG4A-6034 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XG4A-6034 Specifications
Type Description
Series:XG4
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:60
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks, Long
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:-
Insulation Height:0.335" (8.51mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:5.90µin (0.150µm)
Contact Finish - Post:Tin
Contact Material:Brass, Nickel
Insulation Material:Polybutylene Terephthalate (PBT), Glass Filled
Features:Keying Slot, Mounting Flange
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:300V
