1-963215-1

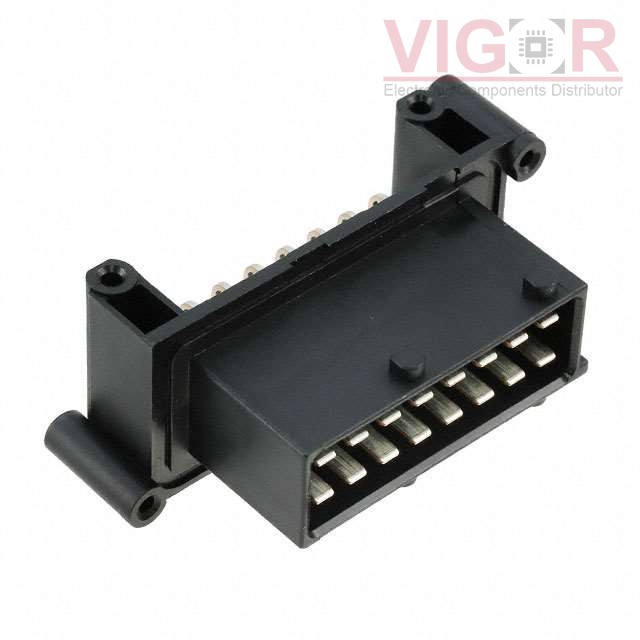

Image is for reference,
please contact us to get the real picture

Part No :: 1-963215-1

Manufacturer: TE Connectivity AMP Connectors

Description: CONN HEADER R/A 16POS 5MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 01 - Aug 05 2025

DataSheet: 1-963215-1 PDF

Availability: 43 pieces

Unit Price: ~~$14.24000~~

Current price of 1-963215-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1-963215-1 Specifications

Type	Description
Series:	Junior Power Timer
Package:	Bulk
Part Status:	Active
Connector Type:	Plug
Contact Type:	Tab
Pitch - Mating:	0.197" (5.00mm)
Number of Positions:	16
Number of Rows:	2
Row Spacing - Mating:	0.236" (6.00mm)
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole, Right Angle
Termination:	Solder
Fastening Type:	Lever Lock
Contact Length - Mating:	-
Contact Length - Post:	0.122" (3.10mm)
Overall Contact Length:	-
Insulation Height:	1.055" (26.80mm)
Contact Shape:	Rectangular
Contact Finish - Mating:	Tin
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	Tin
Contact Material:	Copper Alloy
Insulation Material:	Polybutylene Terephthalate (PBT), Glass Filled
Features:	Mounting Flange
Operating Temperature:	-
Ingress Protection:	-
Material Flammability Rating:	-
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	-
