0015913224

0015913224

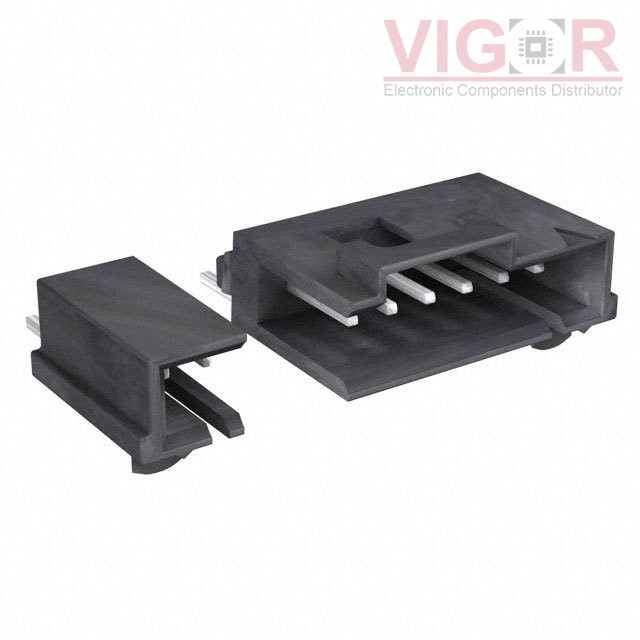

Image is for reference,
please contact us to get the real picture

Part No :

0015913224

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 22POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 01 - Aug 05 2025
DataSheet
0015913224 PDF
Availability
0 pieces
Unit Price
$4.97044

Current price of 0015913224 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0015913224 Specifications
Type Description
Series:SL 70634
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:22
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.215" (5.45mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:74.8µin (1.90µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Polyester, Glass Filled
Features:Board Guide
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
