EHF-117-01-L-D-SM-P

EHF-117-01-L-D-SM-P

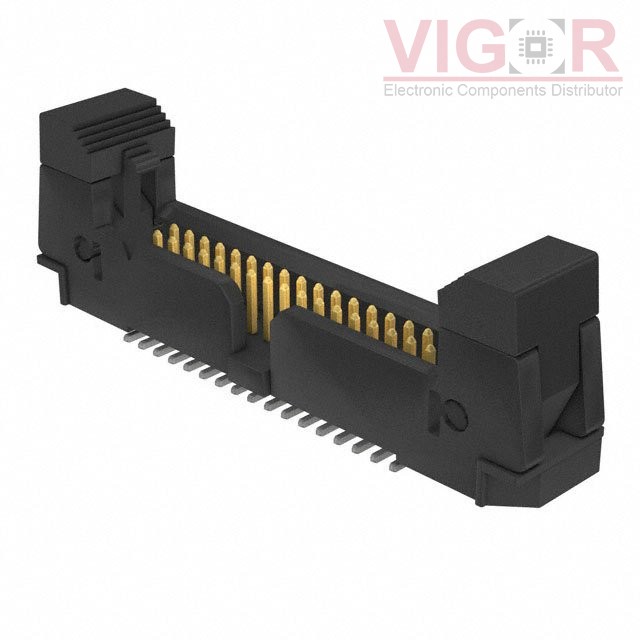

Image is for reference,
please contact us to get the real picture

Part No :

EHF-117-01-L-D-SM-P

Manufacturer
Samtec, Inc.
Description
CONN HEADER SMD 34POS 1.27MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
EHF-117-01-L-D-SM-P PDF
Availability
0 pieces
Unit Price
$9.37667

Current price of EHF-117-01-L-D-SM-P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

EHF-117-01-L-D-SM-P Specifications
Type Description
Series:EHF
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:34
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount
Termination:Solder
Fastening Type:Latch Lock/Eject Hooks
Contact Length - Mating:0.120" (3.05mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.325" (8.25mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP), Glass Filled
Features:Keying Slot, Pick and Place
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):1.75A
Voltage Rating:-
