IPT1-105-06-L-D

IPT1-105-06-L-D

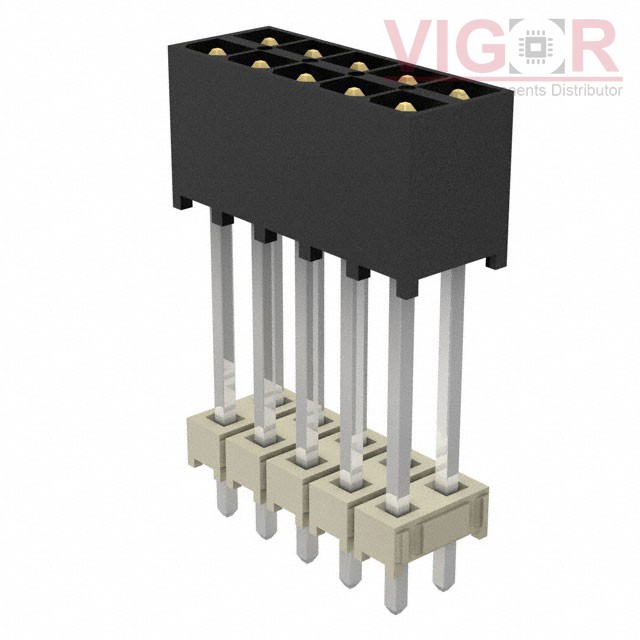

Image is for reference,
please contact us to get the real picture

Part No :

IPT1-105-06-L-D

Manufacturer
Samtec, Inc.
Description
CONN HEADER VERT 10POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 16 - Jul 20 2025
DataSheet
IPT1-105-06-L-D PDF
Availability
0 pieces
Unit Price
$4.52000

Current price of IPT1-105-06-L-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IPT1-105-06-L-D Specifications
Type Description
Series:Mini Mate® IPT1
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:10
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.155" (3.94mm)
Contact Length - Post:0.093" (2.35mm)
Overall Contact Length:0.695" (17.65mm)
Insulation Height:0.602" (15.29mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:10.0µin (0.25µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-55°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2.3A per Contact
Voltage Rating:775VAC, 1095VDC
