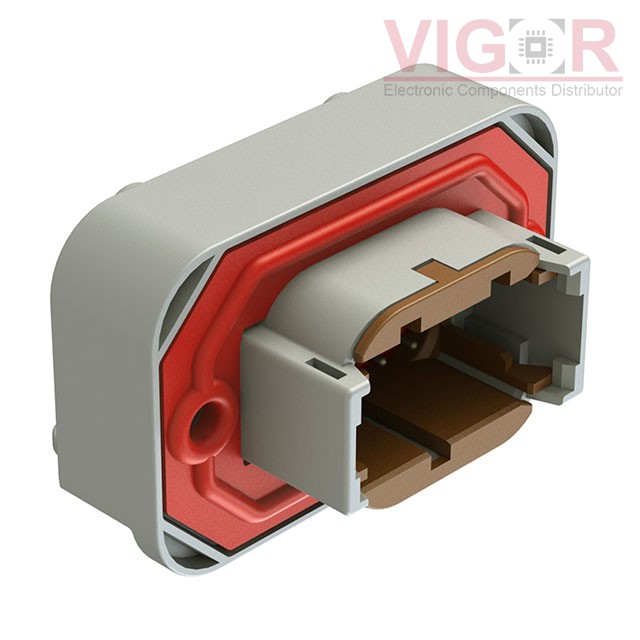

ATM13-08PD-BM04

ATM13-08PD-BM04

Image is for reference,
please contact us to get the real picture

Part No :

ATM13-08PD-BM04

Manufacturer
Tuchel / Amphenol
Description
CONN HEADER R/A 8POS
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
ATM13-08PD-BM04 PDF
Availability
0 pieces
Unit Price
$14.95650

Current price of ATM13-08PD-BM04 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATM13-08PD-BM04 Specifications
Type Description
Series:BoardLock™ ATM
Package:Tray
Part Status:Active
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:-
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:0.120" (3.05mm)
Overall Contact Length:-
Insulation Height:-
Contact Shape:Circular
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:Board Guide, Mating Flange, Mounting Flange, Potting Wall
Operating Temperature:-55°C ~ 125°C
Ingress Protection:IP67
Material Flammability Rating:-
Insulation Color:Gray
Current Rating (Amps):7.5A
Voltage Rating:250V
