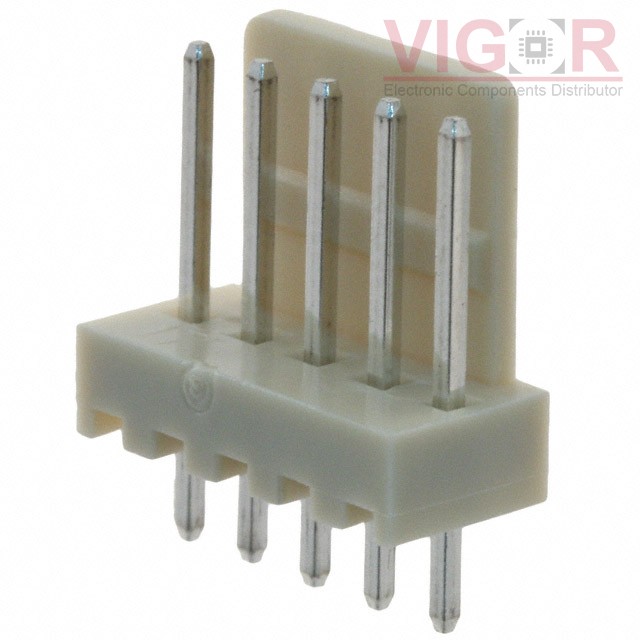

SWR25X-NRTC-S05-ST-BA

SWR25X-NRTC-S05-ST-BA

Image is for reference,
please contact us to get the real picture

Part No :

SWR25X-NRTC-S05-ST-BA

Manufacturer
Sullins Connector Solutions
Description
CONN HEADER VERT 5POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
SWR25X-NRTC-S05-ST-BA PDF
Availability
1295 pieces
Unit Price
$0.23000

Current price of SWR25X-NRTC-S05-ST-BA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

SWR25X-NRTC-S05-ST-BA Specifications
Type Description
Series:SWR25X
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:5
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 1 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:0.299" (7.60mm)
Contact Length - Post:0.134" (3.40mm)
Overall Contact Length:0.559" (14.20mm)
Insulation Height:0.449" (11.40mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:-
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA66), Nylon 6/6
Features:-
Operating Temperature:-25°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Beige
Current Rating (Amps):3A
Voltage Rating:250V
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT TSM-111-02-L-SH-P

TSM-111-02-L-SH-P

CONN HEADER SMD R/A 11POS 2.54MM

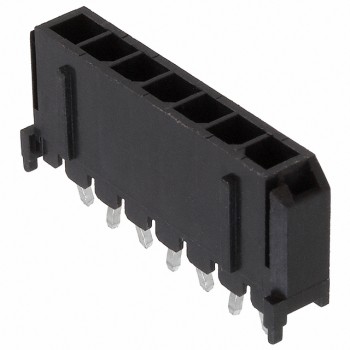

HOT 66200711122

66200711122

CONN HEADER VERT 7POS 3MM

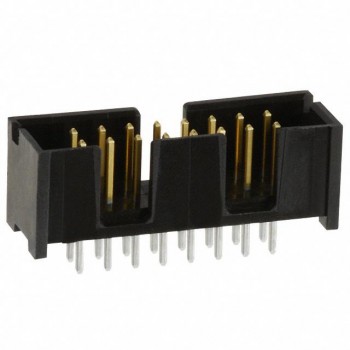

HOT 5103309-3
