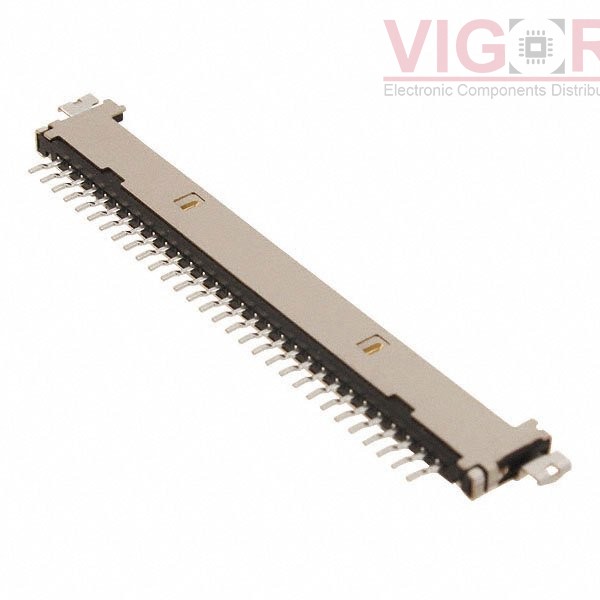

DF19L-30P-1H(54)

Image is for reference,
please contact us to get the real picture

Part No :: DF19L-30P-1H(54)

Manufacturer: Hirose

Description: CONN HEADER BRD EDGE 30P 1MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Jul 11 - Jul 15 2025

DataSheet: DF19L-30P-1H(54) PDF

Availability: 0 pieces

Unit Price: ~~$2.67000~~

Current price of DF19L-30P-1H(54) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF19L-30P-1H(54) Specifications

Type	Description
Series:	DF19
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Last Time Buy
Connector Type:	Receptacle
Contact Type:	Male Pin
Pitch - Mating:	0.039" (1.00mm)
Number of Positions:	30
Number of Rows:	1
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 3 Wall
Mounting Type:	Board Edge, Cutout; Surface Mount, Right Angle
Termination:	Solder
Fastening Type:	Friction Lock
Contact Length - Mating:	-
Contact Length - Post:	-
Overall Contact Length:	-
Insulation Height:	0.057" (1.45mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	-
Contact Finish - Post:	-
Contact Material:	Phosphor Bronze
Insulation Material:	Polyamide (PA), Nylon
Features:	Solder Retention
Operating Temperature:	-35°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	-
Voltage Rating:	100V
