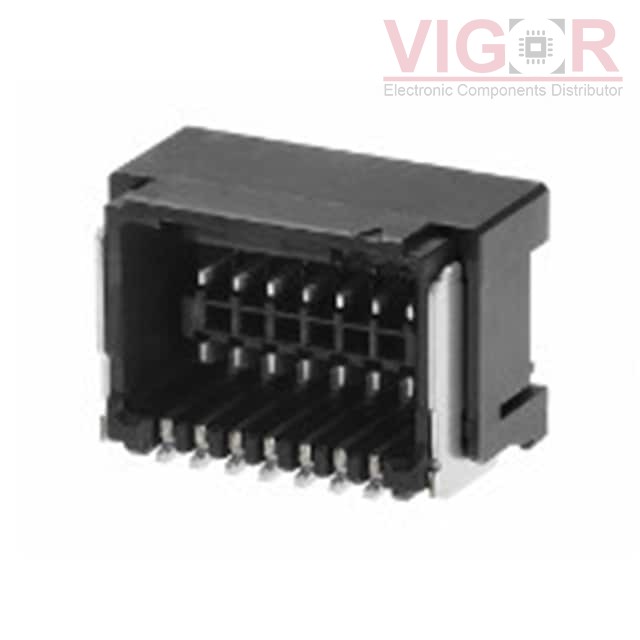

Image is for reference,
please contact us to get the real picture

Part No :

5054481271

Manufacturer
Woodhead - Molex
Description
CONN HEADER SMD R/A 12POS 1.25MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 30 - Aug 03 2025
DataSheet
5054481271 PDF
Availability
2189 pieces
Unit Price
$1.74000

Current price of 5054481271 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5054481271 Specifications
Type Description
Series:Micro-Lock PLUS 505448
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.049" (1.25mm)
Number of Positions:12
Number of Rows:2
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Latch Holder
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.352" (8.95mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:39.4µin (1.00µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyamide (PA), Nylon
Features:Pick and Place, Solder Retention
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):Varies by Wire Gauge
Voltage Rating:50VAC/DC
