P50E-020P1-S1-EA

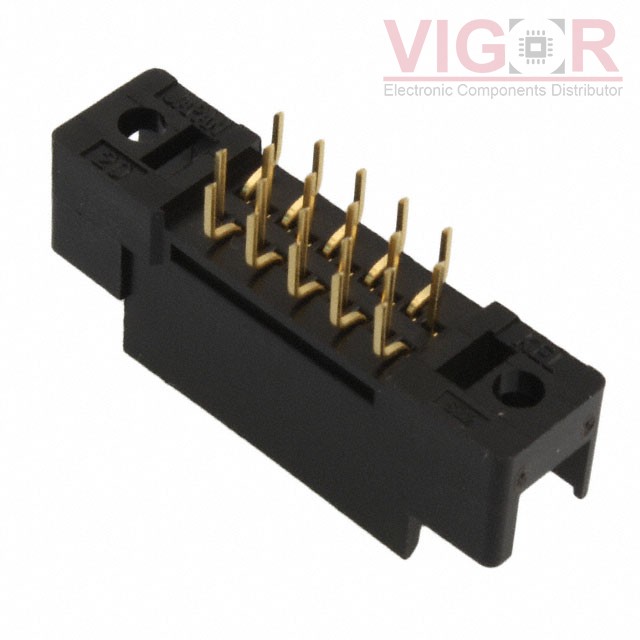

Image is for reference,
please contact us to get the real picture

Part No :: P50E-020P1-S1-EA

Manufacturer: 3M

Description: CONN HEADER VERT 20POS 1.27MM

Catalog: Rectangular Connectors - Headers, Male Pins

Shipped from: HK warehouse

Expected Shipping Date: Aug 09 - Aug 13 2025

DataSheet: P50E-020P1-S1-EA PDF

Availability: 0 pieces

Unit Price: ~~$3.32801~~

Current price of P50E-020P1-S1-EA is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

P50E-020P1-S1-EA Specifications

Type	Description
Series:	Pak 50, P50E
Package:	Bulk
Part Status:	Active
Connector Type:	Plug
Contact Type:	Center Strip Contact
Pitch - Mating:	0.050" (1.27mm)
Number of Positions:	20
Number of Rows:	2
Row Spacing - Mating:	-
Number of Positions Loaded:	All
Style:	Board to Board or Cable
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Latch Holder
Contact Length - Mating:	-
Contact Length - Post:	0.118" (3.00mm)
Overall Contact Length:	-
Insulation Height:	0.421" (10.70mm)
Contact Shape:	-
Contact Finish - Mating:	Gold
Contact Finish Thickness - Mating:	10.0µin (0.25µm)
Contact Finish - Post:	Gold
Contact Material:	Copper Alloy
Insulation Material:	Polyamide (PA), Nylon, Glass Filled
Features:	-
Operating Temperature:	-55°C ~ 85°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	0.5A
Voltage Rating:	-
