1747468-1

1747468-1

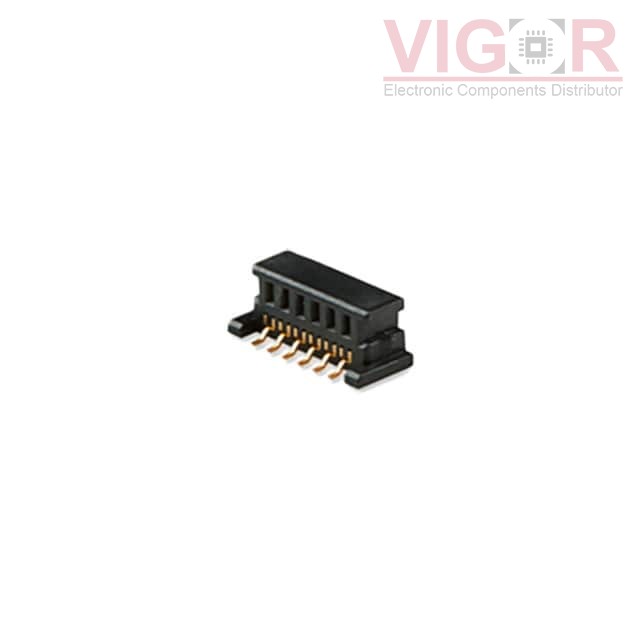

Image is for reference,
please contact us to get the real picture

Part No :

1747468-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER SMD R/A 6POS 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 25 - Aug 29 2025
DataSheet
1747468-1 PDF
Availability
0 pieces
Unit Price
$3.85000

Current price of 1747468-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

1747468-1 Specifications
Type Description
Series:Mini VP
Package:Bulk
Part Status:Active
Connector Type:Header
Contact Type:Tab
Pitch - Mating:0.039" (1.00mm)
Number of Positions:6
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Surface Mount, Right Angle
Termination:Solder
Fastening Type:Locking Ramp
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.128" (3.25mm)
Contact Shape:Rectangular
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:8.00µin (0.203µm)
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA6T), Nylon 6T
Features:-
Operating Temperature:-40°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A
Voltage Rating:-
