2216-16C00RP3U

2216-16C00RP3U

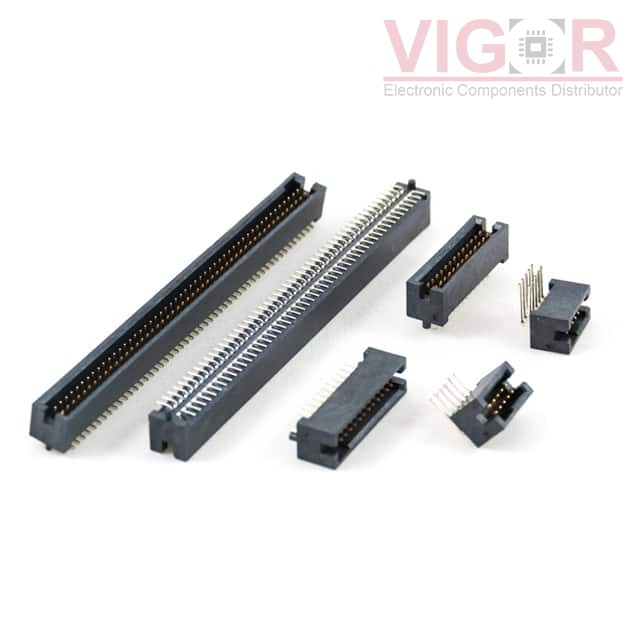

Image is for reference,
please contact us to get the real picture

Part No :

2216-16C00RP3U

Manufacturer
Oupiin
Description
BOX HEADER, 16 PIN, RIGHT ANGLE,
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Aug 02 - Aug 06 2025
DataSheet
2216-16C00RP3U PDF
Availability
0 pieces
Unit Price
$1.21000

Current price of 2216-16C00RP3U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2216-16C00RP3U Specifications
Type Description
Series:2216
Package:Tube
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.050" (1.27mm)
Number of Positions:16
Number of Rows:2
Row Spacing - Mating:0.050" (1.27mm)
Number of Positions Loaded:All
Style:Board to Board
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:-
Contact Length - Post:0.091" (2.30mm)
Overall Contact Length:-
Insulation Height:0.222" (5.65mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:Flash
Contact Finish - Post:Gold
Contact Material:Brass
Insulation Material:Plastic
Features:-
Operating Temperature:-65°C ~ 125°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:-
Current Rating (Amps):1A
Voltage Rating:-
