DF19K-20P-1H(54)

DF19K-20P-1H(54)

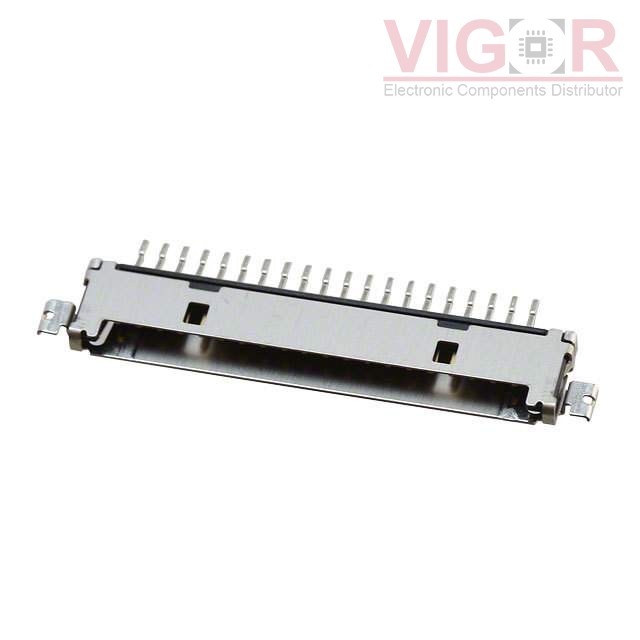

Image is for reference,
please contact us to get the real picture

Part No :

DF19K-20P-1H(54)

Manufacturer
Hirose
Description
CONN HEADER BRD EDGE 20P 1MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 25 - Jul 29 2025
DataSheet
DF19K-20P-1H(54) PDF
Availability
914 pieces
Unit Price
$1.62000

Current price of DF19K-20P-1H(54) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DF19K-20P-1H(54) Specifications
Type Description
Series:DF19
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Last Time Buy
Connector Type:Receptacle
Contact Type:Male Pin
Pitch - Mating:0.039" (1.00mm)
Number of Positions:20
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 3 Wall
Mounting Type:Board Edge, Cutout; Surface Mount, Right Angle
Termination:Solder
Fastening Type:Friction Lock
Contact Length - Mating:-
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:0.057" (1.45mm)
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:-
Contact Finish - Post:-
Contact Material:Phosphor Bronze
Insulation Material:Polyamide (PA), Nylon
Features:Solder Retention
Operating Temperature:-35°C ~ 85°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:100V
